Surface cracks in concrete caused by freeze-thaw cycles and internal pressure

Air Entrainment: The Hidden Protection Inside Concrete

Concrete does not fail because it gets cold, it fails because pressure has nowhere to go.

Freeze-thaw damage begins inside the material. When water freezes, it expands and generates internal stress that concrete cannot resist.

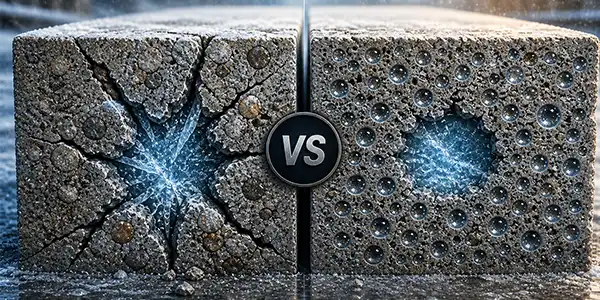

Concrete internal cracking caused by freeze-thaw pressure and air entrainment system


Air entrainment is one of the most effective ways to control this stress, not by strengthening the surface, but by redesigning how the material behaves internally.

To understand the full mechanism, see: Freeze-Thaw Damage in Concrete.


What Is Air Entrainment?

Air entrainment is the controlled introduction of microscopic air bubbles into fresh concrete.

These air voids are:

  • Uniformly distributed
  • Microscopic in size
  • Stable after hardening

They form an internal buffer system within the cement matrix.


How Air Entrainment Works

Water expands by approximately 9% when it freezes. In dense concrete, this creates internal pressure that leads to cracking.

Air voids change this behavior completely:

  • They provide space for expansion
  • They reduce hydraulic pressure
  • They redistribute internal stress

Instead of resisting pressure, the material absorbs it.

For moisture behavior inside concrete, see: The Role of Water in Concrete Durability.


Why Air Entrainment Is Critical

Pressure Control

Air voids prevent the buildup of destructive internal stress.

Crack Prevention

Lower stress levels reduce the formation and growth of microcracks.

Durability

Air-entrained concrete withstands significantly more freeze-thaw cycles than standard mixes.


What Happens Without It

Concrete without an air-void system behaves rigidly under freezing conditions.

  • Rapid surface scaling
  • Internal cracking
  • Progressive strength loss
  • Shortened service life

Even high-strength concrete fails if internal pressure is not managed.

See how cracks develop: Why Concrete Cracks During Freeze-Thaw Cycles.


Performance Depends on Precision

Air entrainment is not just about adding air, it must be controlled.

  • Air content: typically 4 - 8% in exposed environments
  • Spacing factor: distance between voids
  • Distribution: uniformity throughout the mix

Poor distribution reduces effectiveness, even when air is present.


Internal Protection vs Surface Protection

Concrete durability requires two different mechanisms working together:

  • Internal system: air entrainment controls pressure
  • External system: surface protection limits water ingress

One without the other is incomplete.

Compare both approaches: Surface vs Deep Protection.


Critical Insight: Breathability Matters

Protecting concrete is not about sealing it completely.

The material must:

  • Resist liquid water
  • Allow moisture vapor to escape

If pores are fully blocked, moisture becomes trapped inside.

Under temperature changes, this trapped moisture increases internal stress, accelerating damage instead of preventing it.

Durable systems control moisture, they do not trap it.


Conclusion

Air entrainment is not a secondary feature, it is a fundamental requirement for concrete exposed to freeze–thaw conditions.

By providing space for expansion, it transforms how concrete responds to internal pressure.

Without it, durability is limited, regardless of strength.


FAQ

What is air-entrained concrete?

Concrete with microscopic air bubbles designed to reduce internal pressure.

Why is it important?

It prevents stress buildup during freezing and reduces cracking.

Is high-strength concrete enough?

No. Strength alone cannot prevent internal pressure damage.

Is surface sealing sufficient?

No. Internal pressure control and moisture management are both required.
