Concrete doesn’t fail suddenly, it starts with microscopic cracks.
Freeze-thaw cycles are one of the most damaging processes affecting concrete. What begins as invisible internal stress gradually develops into visible cracking and structural deterioration.
To understand the full mechanism, see: Freeze-Thaw Damage in Concrete.

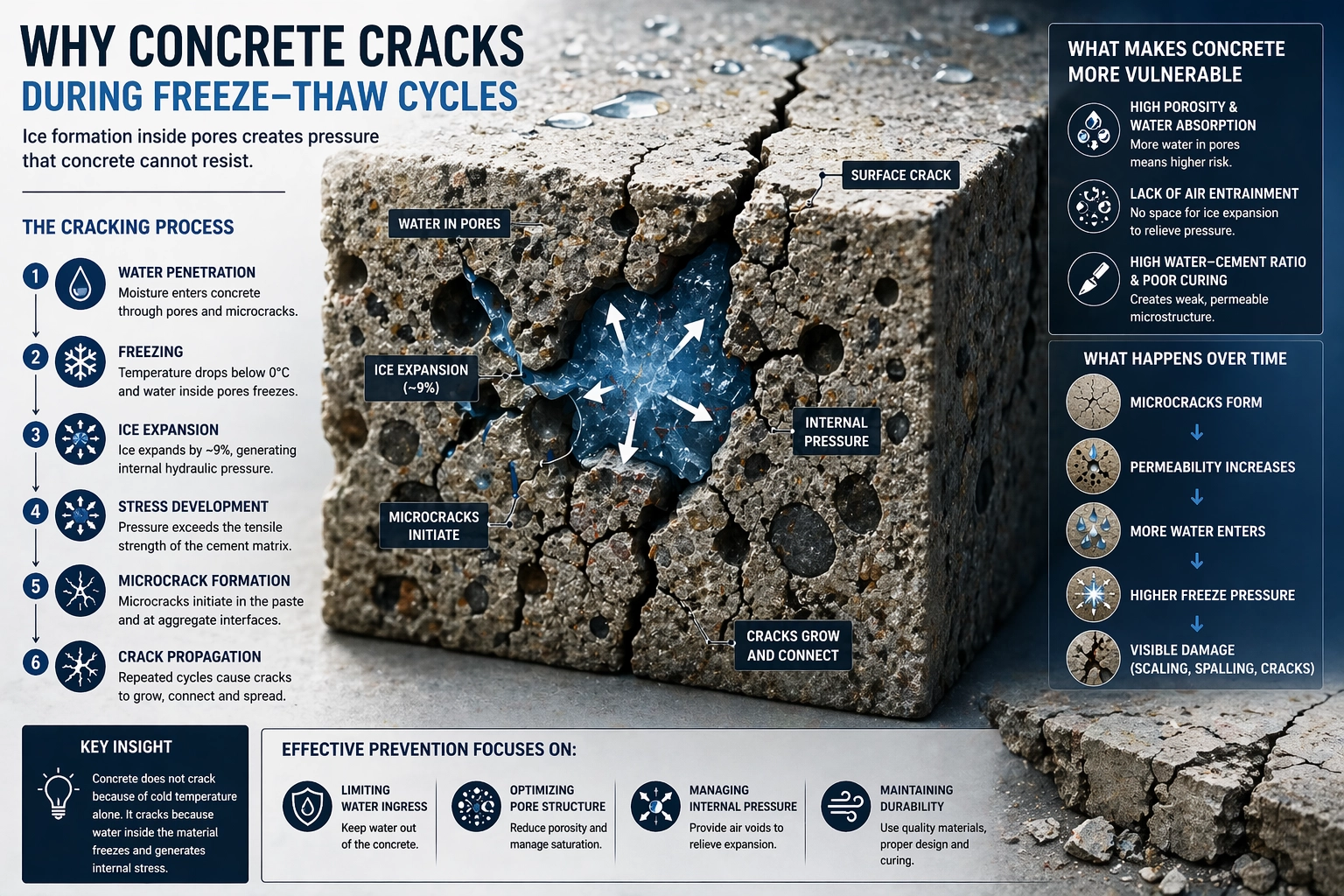

Concrete contains microscopic pores that absorb water. When temperatures drop below freezing, this water turns into ice.
Water expands by approximately 9% when it freezes.
This expansion creates internal pressure that exceeds the tensile strength of concrete.
Moisture behavior is the key factor: Role of Water in Concrete.
Moisture enters the structure through pores and microvoids.
Temperature drops below 0°C and water freezes.
Ice increases volume and creates pressure.
Internal pressure exceeds material resistance.
Cracks initiate at a microscopic level.
Repeated cycles expand and connect cracks.
Freeze-thaw damage is cumulative:
As permeability increases, more water enters, accelerating damage.
Fully saturated concrete cannot absorb expansion.
Creates more pores and increases water absorption.
No internal space to relieve pressure.
Learn more: Air-Entrainment in Concrete.
Leads to weak structure and higher permeability.
Surface treatments alone are often insufficient.
Effective protection must work inside the material: Surface vs Deep Protection.
Concrete does not crack because of cold alone.
It cracks because water inside freezes and creates internal stress.
Controlling cracking requires managing:
Freeze-thaw cracking is a predictable process driven by moisture and temperature interaction.
Long-term durability depends on controlling moisture, not just surface strength.
Because water inside freezes and expands, creating internal pressure.
No, it starts microscopically and becomes visible over time.
High moisture levels, poor structure, and lack of air voids.
Yes, by controlling moisture and internal conditions.
Freeze-thaw damage begins inside the material, not on the surface.
Understanding the cause is the first step. Applying the right strategy ensures long-term durability.
